Product Details
This BLUETTI kit brings together the complete RV5 all-in-one RV solar system in one purchase: the RV5 power hub, two B4810 LiFePO4 batteries, the Epanel smart distribution panel, the Epad central control screen and the RV5 wiring pack set. Together they deliver 5,000W of continuous power and 10.24kWh of battery storage for caravans, RVs, boats and off-grid setups.
Run your air conditioner, microwave, coffee maker and more at the same time, recharge from shore power, solar or your vehicle's alternator, and manage everything from the Epad touchscreen or the BLUETTI app.
What's in the kit:
- 1 x BLUETTI RV5 All-in-One Power Hub 5000W

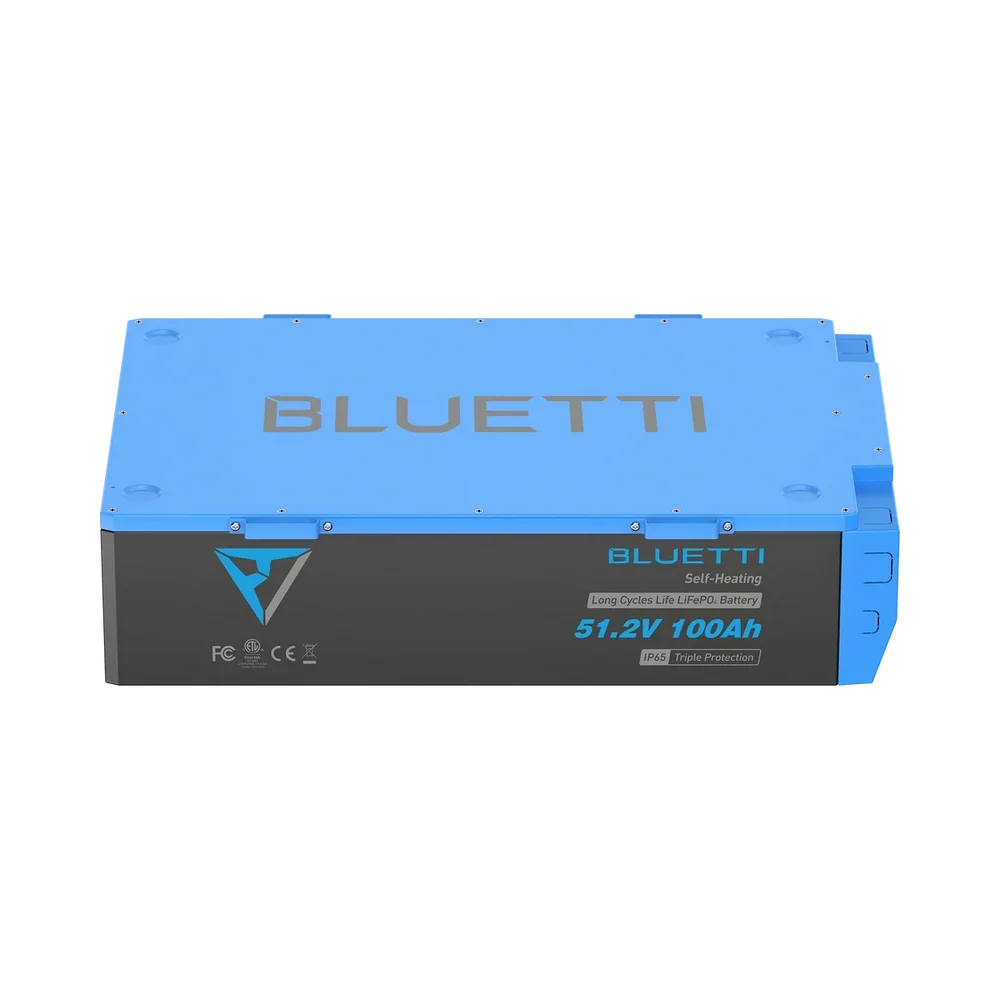

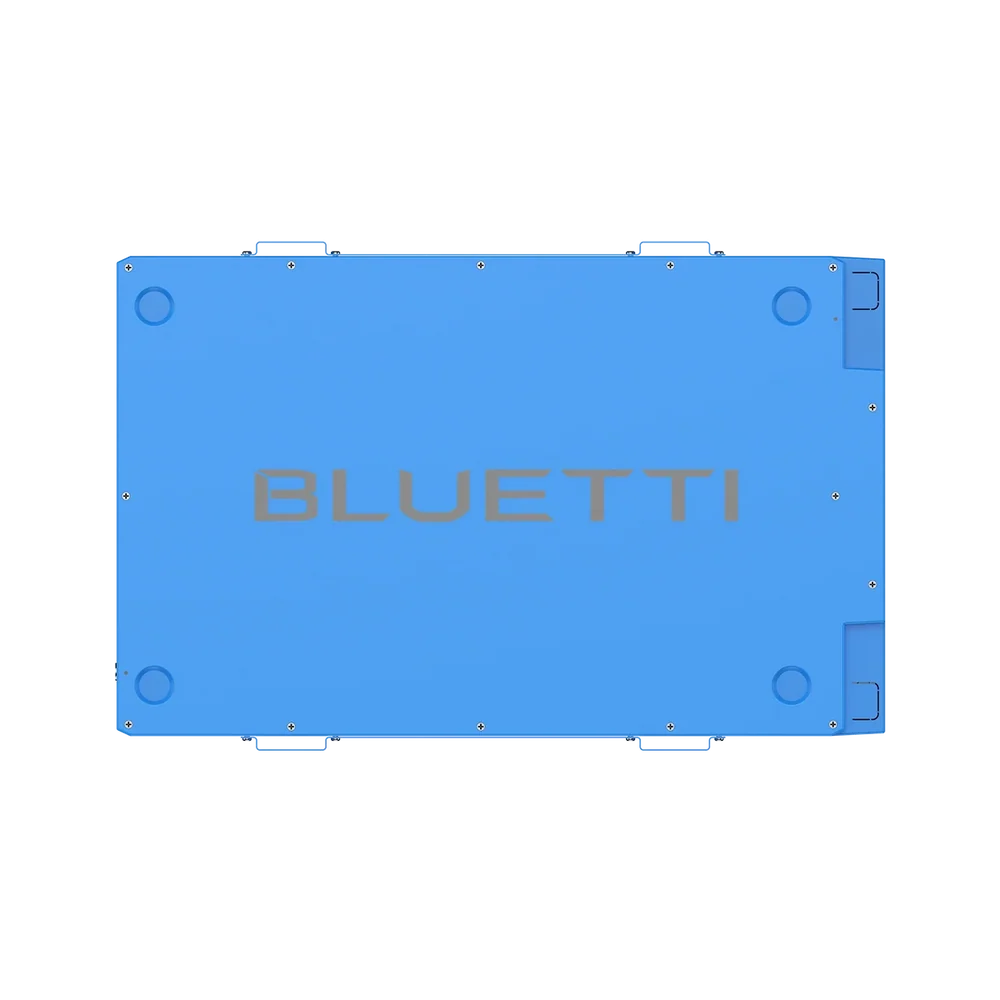

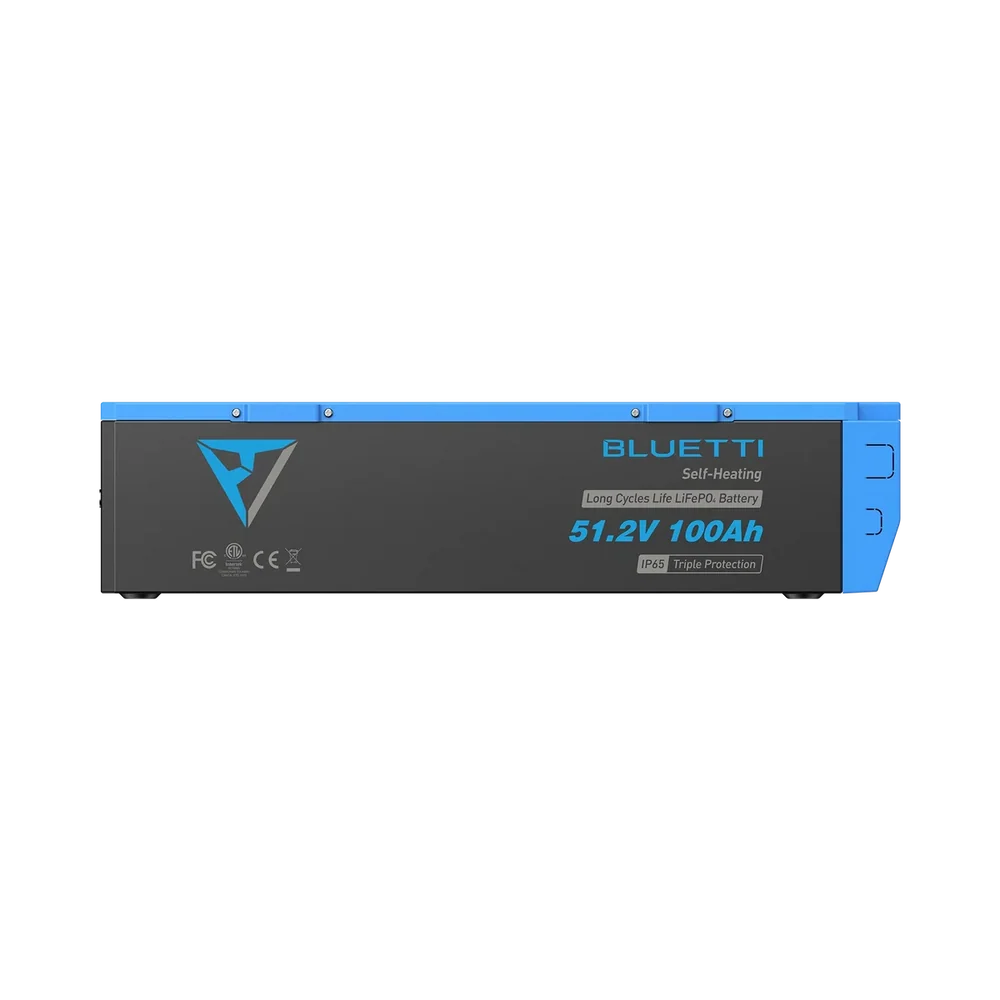

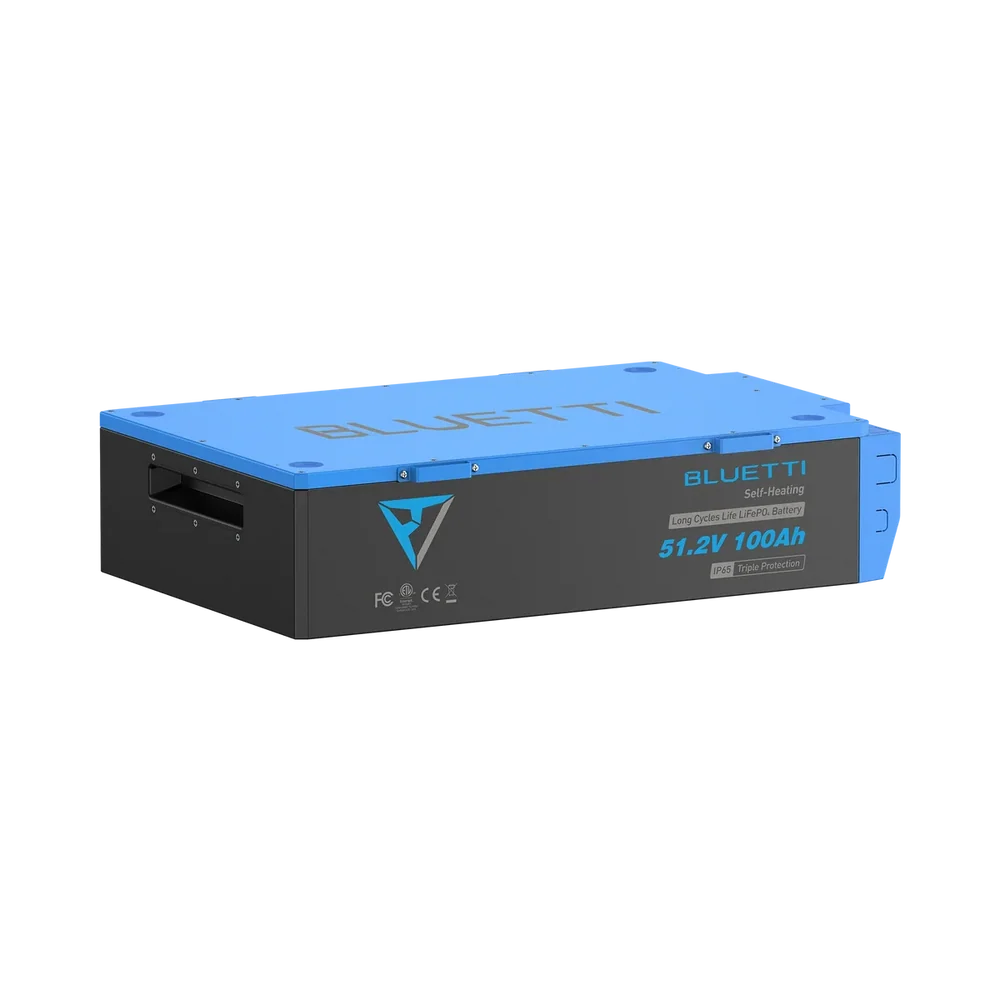

- 2 x BLUETTI B4810 LiFePO4 Battery 51.2V 100Ah (5.12kWh)

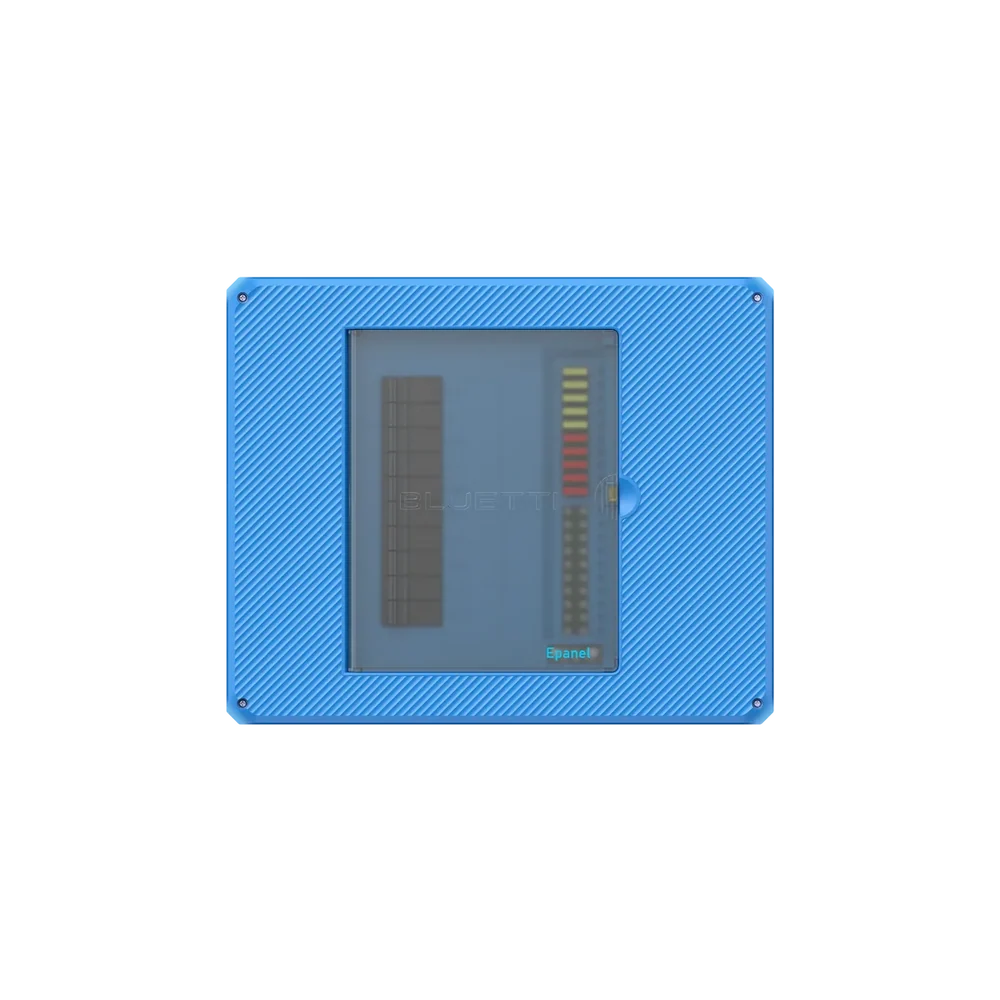

- 1 x BLUETTI Epanel Smart Distribution Panel

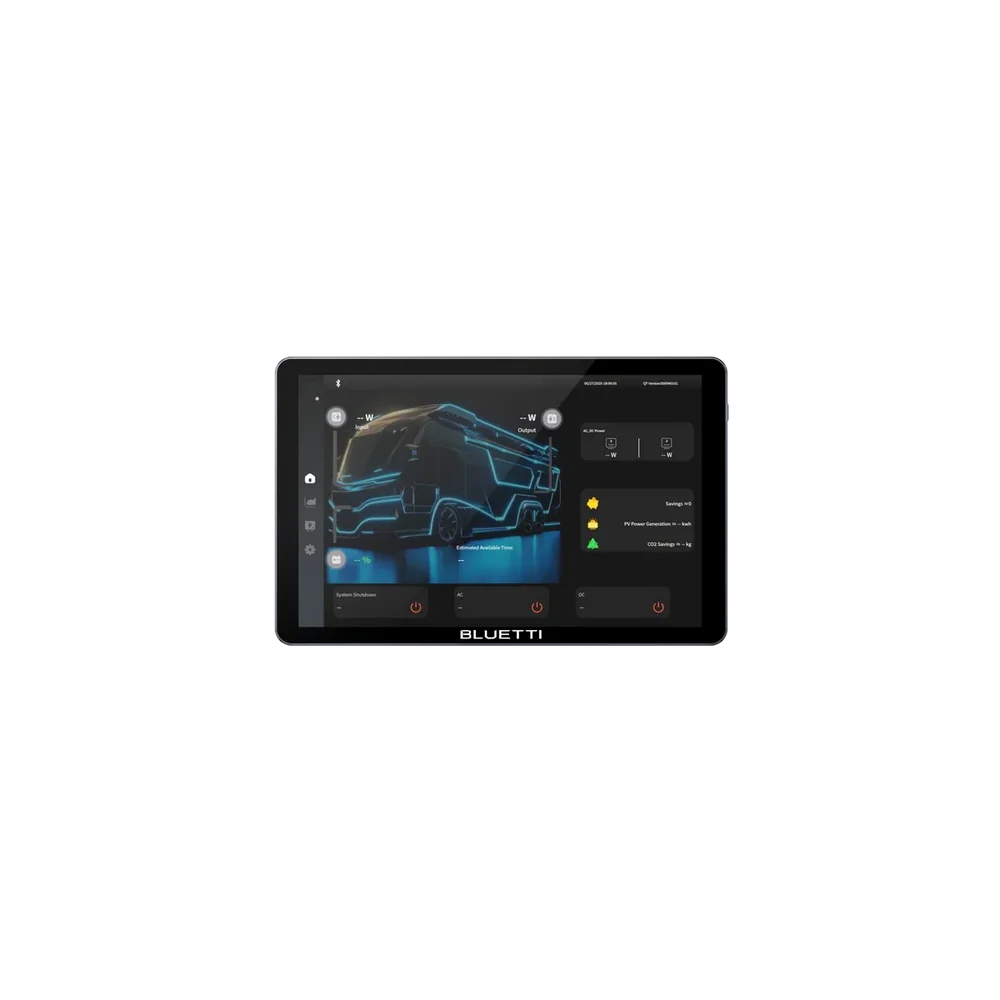

- 1 x BLUETTI Epad Central Control Screen
- 1 x BLUETTI RV5 Wiring Pack Set

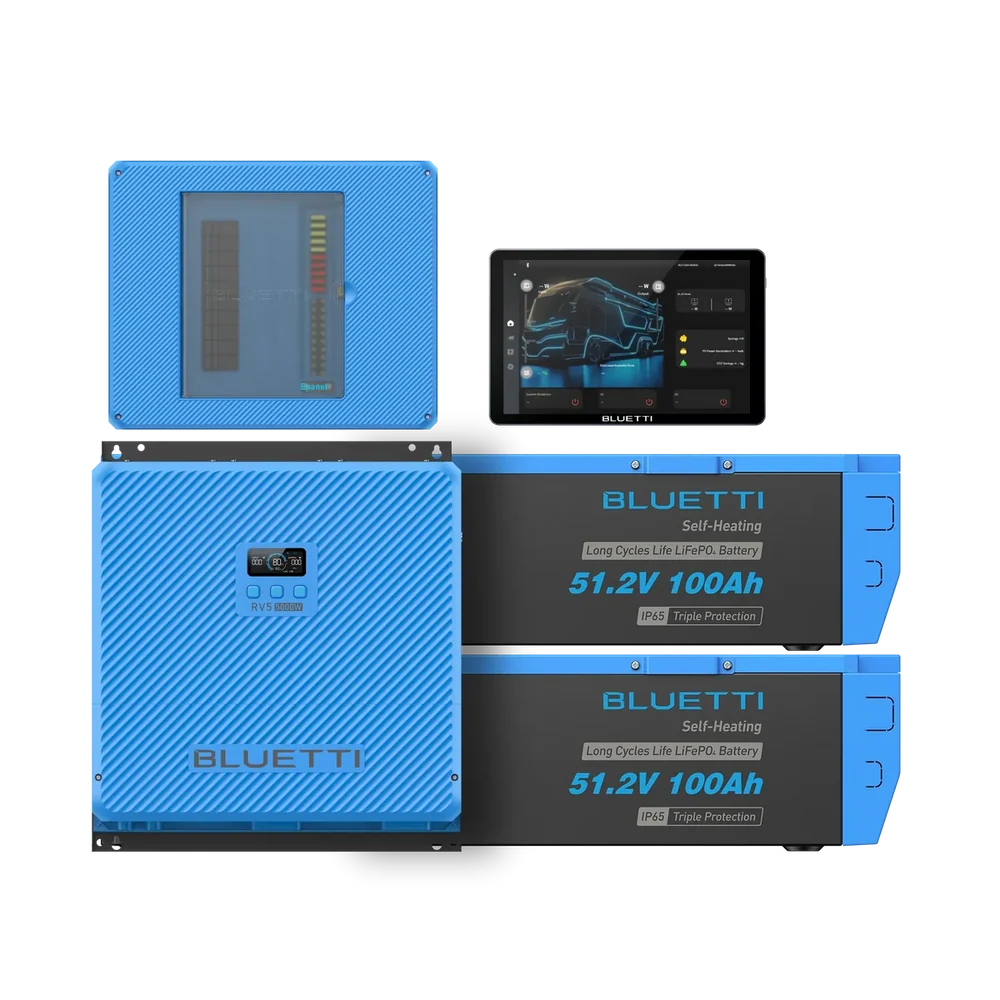

Note: the kit images show the RV5, B4810 batteries, Epanel and Epad. The RV5 Wiring Pack Set is also included in this ODK kit.
Key Features
-
5,000W continuous power: run several high-demand appliances at once.
-
10.24kWh storage: two B4810 LiFePO4 batteries (5,120Wh each).
-
Charge anywhere: up to 5,000W from shore power, up to 1,800W from solar, and up to 1,200W from your vehicle's alternator.
-
Long life: B4810 batteries rated for 6,000 cycles at 70% capacity retention.
-
AC/DC smart panel: Epanel with smart-controlled AC and DC circuits.
-
Smart control pad: Epad HD touchscreen with real-time monitoring and AI-powered diagnostics, plus BLUETTI app control.
-
Easy setup: plug-and-play design with pre-labelled wiring.
-
Built for the road: RV5 is UL-certified and IP65 water-resistant.
-
Expandable: the RV5 supports up to 24 B4810 batteries for up to 122kWh.
Specifications
System
-
Continuous output: 5,000W
-
Battery capacity: 10.24kWh (2 x 5,120Wh)
-
System voltage: 48V
RV5 Power Hub
-
Shore power charging: up to 5,000W
-
Solar input: up to 1,800W
-
Alternator charging: up to 1,200W
-
Standby power: 7W
-
Protection rating: IP65
-
Certification: UL
B4810 Battery (x2)
-
Chemistry: LiFePO4
-
Nominal voltage / capacity: 51.2V, 100Ah, 5,120Wh each
-
Cycle life: 6,000 cycles at 70% capacity retention
Epanel Smart Distribution Panel
-
AC input: 230V
-
AC output: 8 circuits (4 smart-controlled), 30A max. per circuit
-
DC input: 10V to 30V, 100A max.
-
DC output: 20 circuits (6 smart-controlled), 20A max. per circuit
-
Protection rating: IP20
-
Connectivity: Bluetooth / Wi-Fi / RJ45 (CAN)
Epad Central Control Screen
-
Power input: USB-C / RJ45
-
Dimensions: 247 x 158 x 33.9mm (without brackets)
-
Protection rating: IP20
FAQs
What is included in this kit?
1 x RV5 Power Hub, 2 x B4810 batteries, 1 x Epanel, 1 x Epad and 1 x RV5 Wiring Pack Set.
Why two B4810 batteries?
BLUETTI recommends two B4810 batteries for reliable operation of the RV5 system, giving 10.24kWh of storage.
Do I need an electrician to install it?
BLUETTI designed the RV5 system for quick, beginner-friendly setup with pre-labelled wiring, so most RV owners can install it with basic DIY skills.
Can I expand the system later?
Yes. The RV5 supports up to 24 B4810 batteries for up to 122kWh of storage.
