This battery monitor, also known as a coulometer, displays essential battery information such as battery voltage, live current draw (A) and charge level (Ah and %) through its full-colour LCD screen or by connecting your smartphone via Bluetooth.
The most convenient way to monitor your deep-cycle batteries.
This battery monitor, also known as a coulometer, displays essential battery information through its full-colour LCD screen or by connecting your smartphone via Bluetooth. By using a 500A shunt, highly accurate data is collected such as charge level (Ah and %), live current draw (A), live voltage (V) and live watts (W). The monitor also includes an integrated alarm function to alert you when your battery is discharged to a set level, and short circuit and reverse polarity protection technology.
It is suitable for all common battery types including Lithium, AGM, Wet, Gel and Calcium.
Specifications
| Working voltage |
10-120V DC |
| Battery capacity range |
10-1000Ah |
| Max. current |
500A peak / 350A continuous |
| Working power draw |
<1W |
| Accuracy |
±1% |
| Operating temperature |
-20°C to 50°C |
| Weight |
110g |
| Dimensions (LCD screen) |
125mm x 82mm x 21mm |
| Cut-out size |
106mm x 76mm |
| Certifications |
EN62368-1:2014+A11:2017, EN50663:2017, RCM |

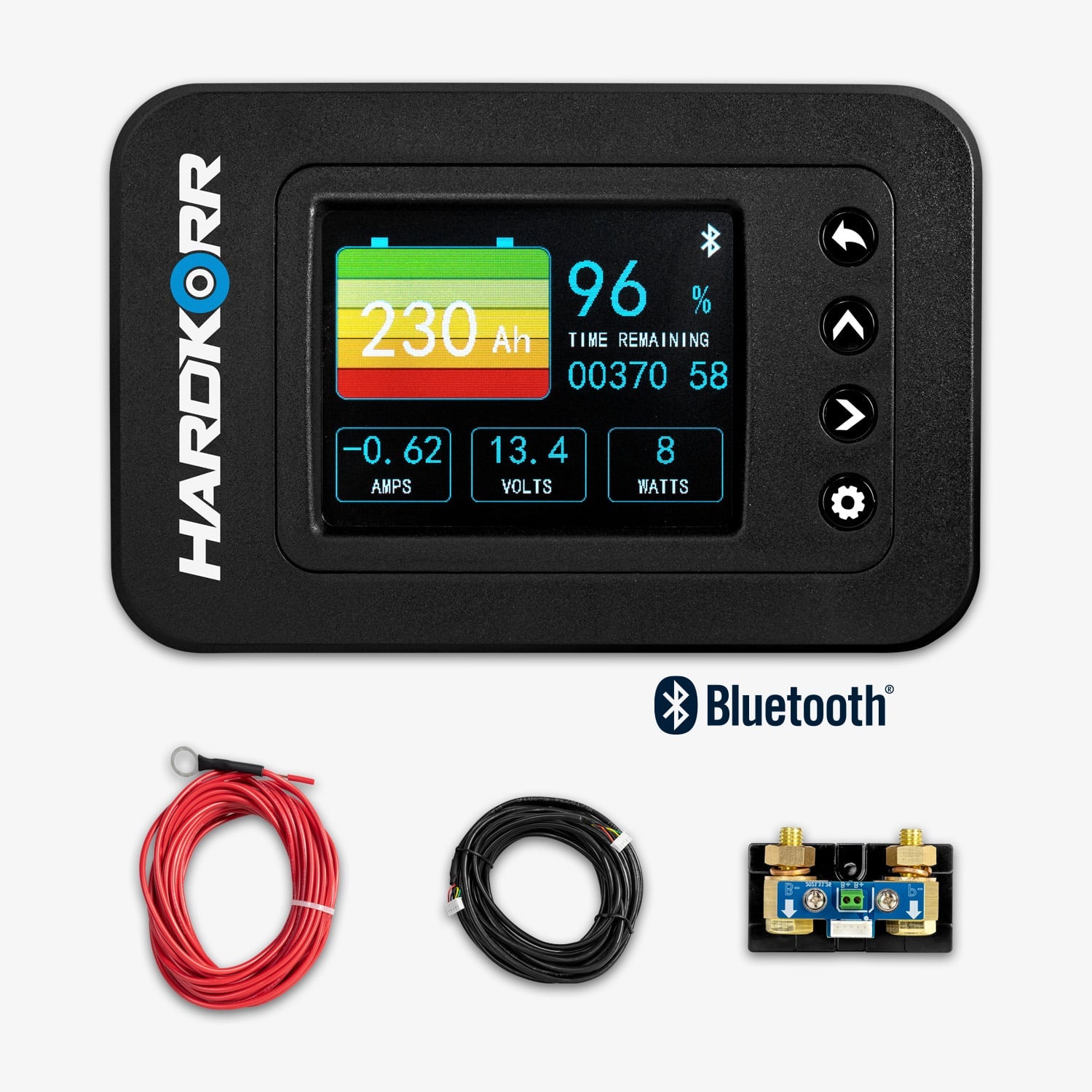

Pack Contents
| 1x |
LCD display module |
| 1x |
500A shunt |
| 1x |
6m shielded cable |
| 1x |
6m B+ wire |
| 1x |
Mounting screws and pad |
| 1x |
Mounting indicator card |
